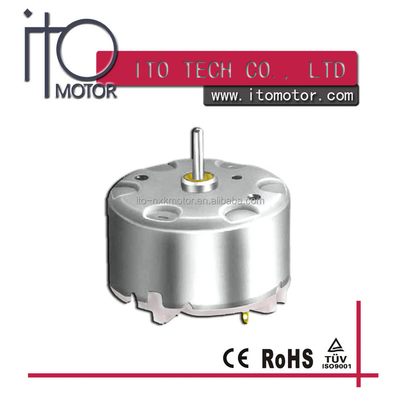

RF-500TB drip proof micro motor 1.5 v, dc 12 v, micro price dc metal brush motor small electric motor

1000 Pieces
MOQ
RF-500TB drip proof micro motor 1.5 v, dc 12 v, micro price dc metal brush motor small electric motor
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Model Number: IRF-500TB
Voltage(V): 0.5-12V
Output Power: 0.04-1W
Usage: BOAT, Car, Electric Bicycle, FAN, Home Appliance, Industrial equipment
Type: Micro Motor
Torque: 5-20g.cm
Construction: Permanent Magnet
Commutation: Brush
Protect Feature: Drip-proof, Enclosed
Speed(RPM): 1500-10000RPM
Continuous Current(A): 0.15-1A
Efficiency: IE 1
Certificación: ce, RoHS, ISO
OD of Micro DC motor: 32mm
Power: DC
Brush: Metal /Carbon Brush
Speed: Constant Speed
Voltage: Adjustable
Material: Rohs Material
shaft diameter: 2.0mm
Información básica
Certificación: ce, RoHS, ISO
Model Number: IRF-500TB
Pago y Envío Términos
Packaging Details: Bubble chamber/ blister/ carton/ wooden box
Supply Ability: 100000 Piece/Pieces per Month
Descripción de producto

High quality diameter 32mm low noise and low speed brush micro dc motor



MODELVoltageNO- LOADAT MAXIMUM   EFFICIENCYSTALL TORQUE
SPEEDCURRENTSPEEDCURRENTTORQUEOUTPUTTORQUECURRENT
OPERATING RANGENOMINALrpmArpmAg·cmWg.cmA
IRF-500TB-125601.5V-12V6V27000.020 21800.084 11.6 0.26600.35
9V40000.023 33000.110 15.8 0.53910.52
12V56000.035 47000.190 12.6 0.61801.00
IRF-500TB-144151.5V-9.0V3V18000.02214300.085 8.4 0.12 41 0.33
6V37000.02830600.130 14.4 0.45 84.0 0.65











Customized Versions of High quality  diameter 32mm 3v low speed brush micro dc motor

1.Precious metal-brush /carbon brush
2. In the lead ,  terminal
3. Voltage and speed adjustment by winding change
4. Modification of shaft length
5. Modification of shaft configuration (knurling ,the gear on the shaft)
6. Assembly of gears, vibrators, pulley, etc.
7. Oil bearing available.

8. Colored zinc plated chassis,  salt fog test



Other customization of 32mm low speed mini dc motor

  1)Plastic end cover

  2)Motor specification can be tailor-made

  3)Motor rotation: CW or CCW

  4)Motor Flux ring thinkness can be made by special.

  5)Motor Connector can be available.



Dimension of High quality  IRF-500TB 3v dc micro vibration motor



Other Views of  high torque low speed micro motors







Production line of Micro DC motor



Certificate of Micro DC motor

Welcome to customize suitable motor from ITO motor.
