Inicio /Productos/Servo motor con cepillo/1015 DC 12V Dual Coreless Brushed Spindle Drive Motor Drip Proof For RC Toys

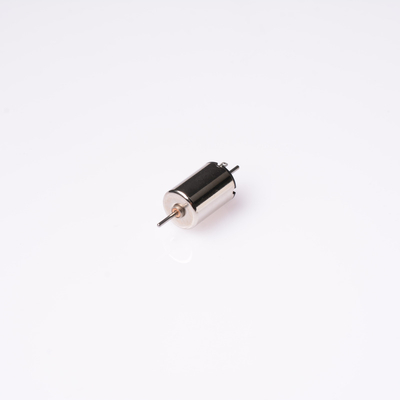

1015 DC 12V Dual Coreless Brushed Spindle Drive Motor Drip Proof For RC Toys

100 Pieces
MOQ
$2.35(100 - 999 Pieces) $2.32(>=1000 Pieces)
Precio
1015 DC 12V Dual Coreless Brushed Spindle Drive Motor Drip Proof For RC Toys
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Warranty: OTHER
Model Number: MD1015DS
Usage: DIVERSE
Type: Micro Motor
Torque: 2.6 g.cm
Construction: Permanent Magnet
Commutation: Brush
Protect Feature: DRIP-PROOF
Speed(RPM): 16000
Continuous Current(A): 0.05
Efficiency: IE 2, 60%
Diameter: 10 mm
Length: 15 mm
Weight: 5.2 g
Rotating Direction: CW
Rated voltage: 12 V
No load current: 15 mA
Torque at max.output: 9 g.cm
Clearance between shafts: 0.05~0.30 mm
Certificación: CE
Información básica
Certificación: CE
Model Number: MD1015DS
Pago y Envío Términos
Packaging Details: Packaging :Polystyrene / Hard paper box / water proof layer
Supply Ability: 20000 Piece/Pieces per Month
Descripción de producto
Product information
MD1015DS DC dual-shaft permanent magnet brush motor
Usually be used in driving motor,tattoo machine,model train,toy,home appliances etc.
Customized performance and OEM are available
Rated voltage
No load speed
Output at max.efficiency
No load current
Weight
12 V
16000 rpm
0.4 W
15 mA Max
5.2 G
Certifications
Application
Shipping
Company Profile
Wingfong Industry is a professional DC motor designer and manufacturer in inland China, our featured products are comprised of coreless brush motor,dual-shaft motor,vibration motor ,drive motor,brushless motor etc. Which have been widely used in products from household, commercial and industrial,compare to those coastal competitors we have advantages of lower cost of labour,management and raw material which makes our products more competitive.
